Laboratory of switching arc diagnostics

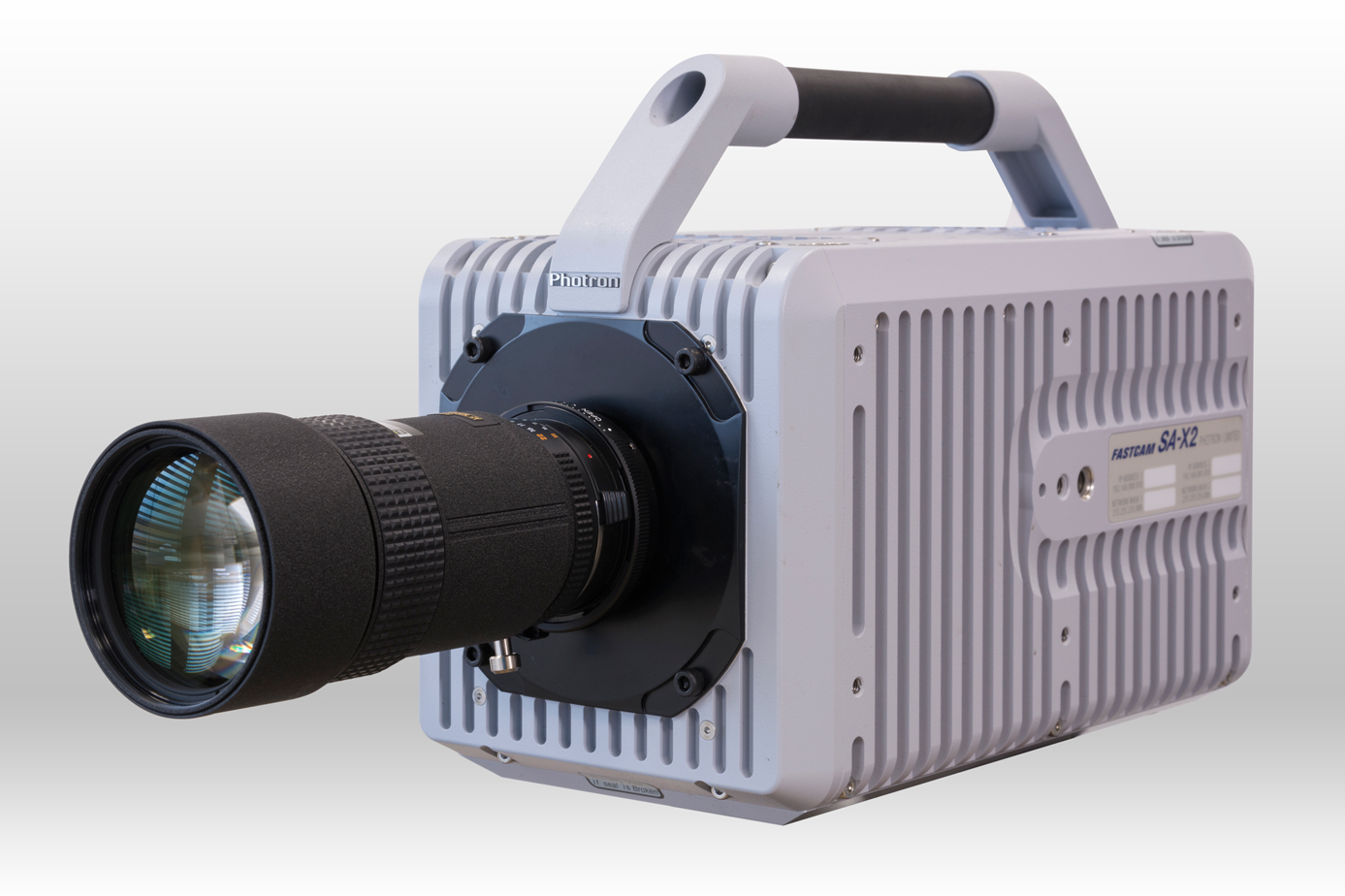

Optical diagnostics of very fast phenomena using FASTCAM SAX-2 high-speed camera



Camera specifications
  • Sensor: 20µm pixel size, 12-bit ADC (Bayer system color, single sensor)
  • Shutter: Global electronic shutter from 1ms to 1µs independent of frame rate (293 ns shutter available subject to export license control)
  • Extended Dynamic Range: Selectable in twenty steps (0 to 95% in 5% increments) to prevent pixel over-exposure
  • Memory 16GB (10,916 frames @ maximum resolution)
  • Recording bit depth: Selectable 8-bit or 12-bit recording
  • Low Light Mode: Low light mode drops the frame rate and shutter time to their maximum values, while maintaining other set parameters, to enable users to position and focus the camera
  • Triggering: Selectable positive or negative TTL 5Vp-p or switch closure
  • Event Markers: Ten user specified event markers indicate specific events within an image sequence in real time. Immediately accessible through software
  • Trigger Modes: Start, End, Center, Manual, Random, Random Reset, Random Center, Random Manual, Image Trigger
  • Saved Image Formats: JPEG, AVI, TIFF, BMP, RAW, RAWW, MRAW PNG, MOV and FTIF.
  • Data Acquisition Supports: Photron and National Instruments™ DAQ options
  • Operating Temperature 0 – 40 degrees
  • Dimensions 177.7 mm (7.0“)H×160 mm (6.3“)W×350 mm (13.78“)D *excluding protrusions
  • Weight 9.9kg (21.3 lbs)
Frame Rate Performance examples
  • 12,500 fps at 1024×1024 pixel resolution
  • 13,500 fps at 1024×1000 pixel resolution
  • 40,000 fps at 640×488 pixel resolution
  • 100,000 fps at 384×264 pixel resolution
  • 1,000,000 fps at 128×8 pixel resolution

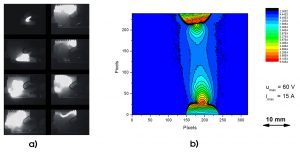

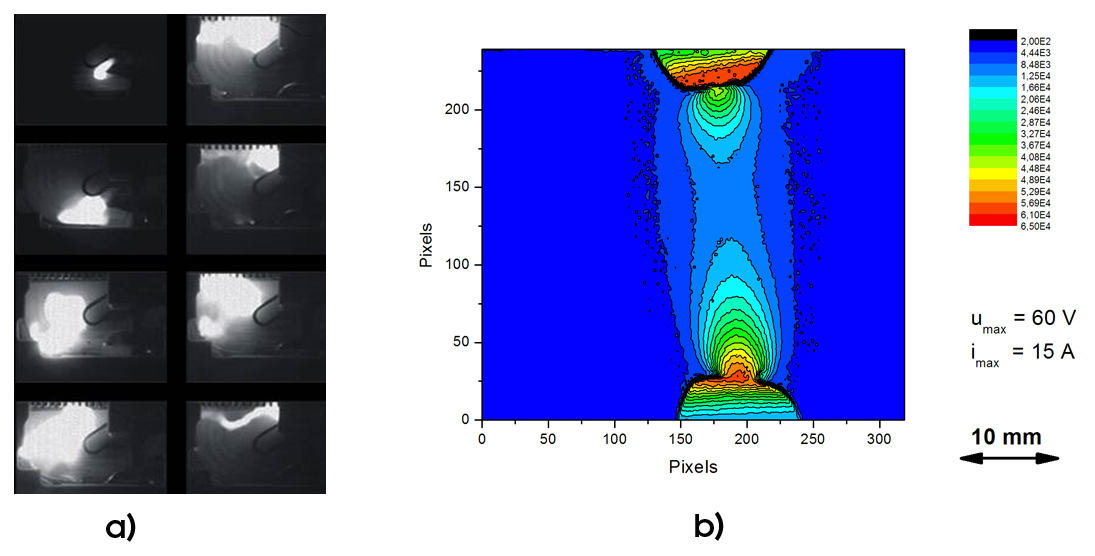

Illustration of the camera use

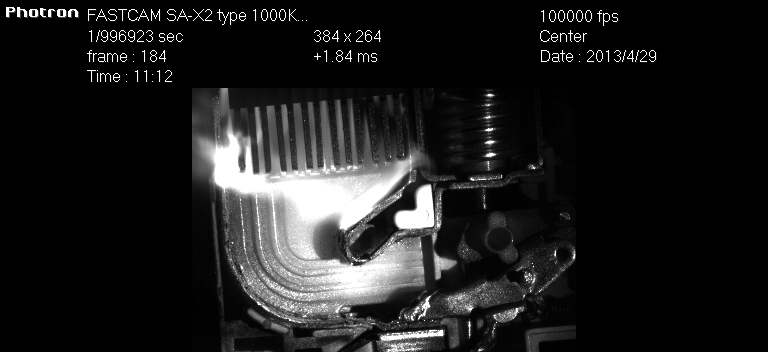

a) Recording of the switching arc in switchgear (circuit breaker)

b) Equidensitometry analysis of AC electric arc between carbon electrodes
